BV PVC Wire And Cable House Wiring

Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
JEZETEK/OEM
Model Number:
BV
Type:
Insulated
Application:
Heating
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
PVC
Product name:
Copper Core
INQUIRY
Description

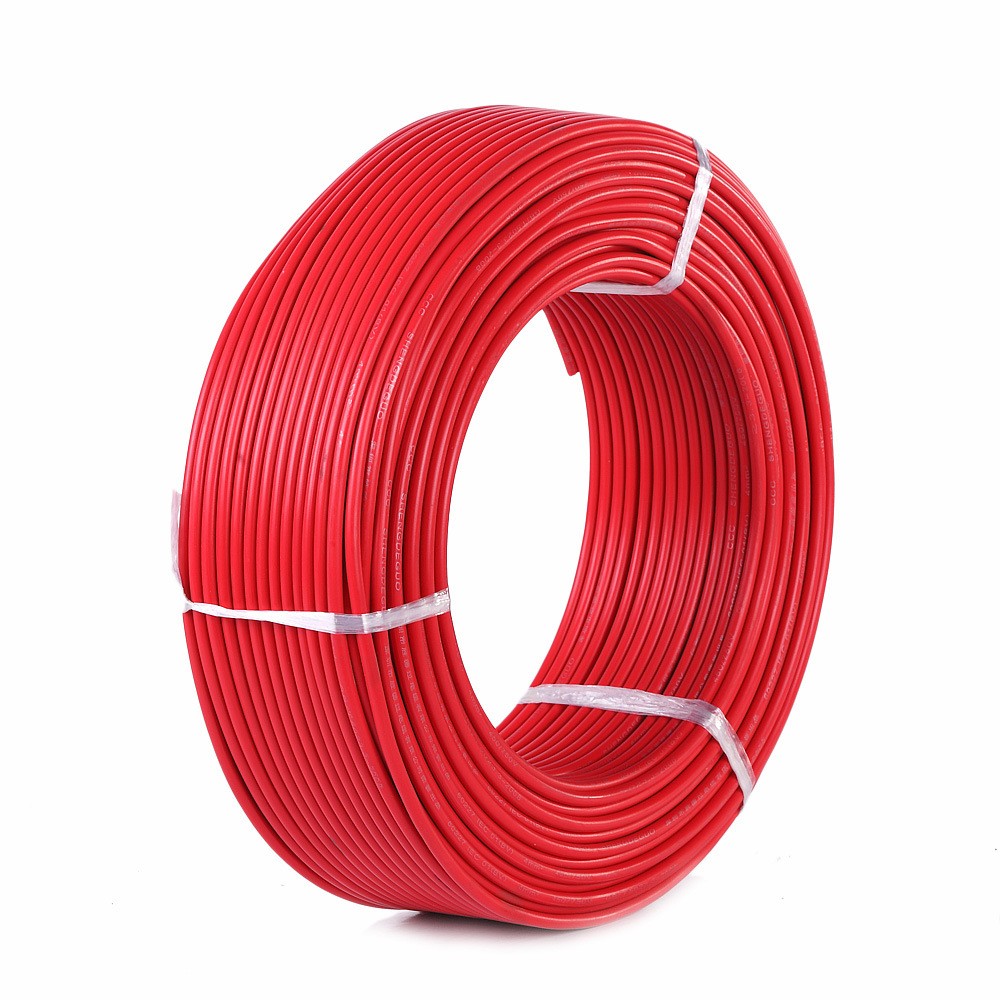

BV PVC Wire And Cable House Wiring

      PVC insulated electric wire has been widely used in our country with the advantages of excellent electric properties,strong ability to resist short circuit,long service life ,easy to install,operate and maintain,etc

      BV RVV pvc wire and cable mainly suitable for laying at the fixed places,  It is widely used as connectors of drive,lighting ,electronic equipments  ,Instrument and telecommunication equipments with rated voltage 450/750v or below ,  Part of plastic wires are used at the equipment with A.C rated votage 300/500v or below.

Nominal section.(mm2) conductor No./Dia (mm) Insulated thick (mm) Max.overall Dia. (mm) Conductor resistance at 20'C Weight (kg/km)
copper aluminum copper aluminum
1.5 1/1.38 0.7 3.3 12.1   19.2
2.5 1/1.78 0.8 3.9 7.41 11.8 30.8 15.0
4 1/2.25 0.8 4.4 4.61 7.39 45.5 21.0
6 1/2.76 0.8 4.9 3.08 4.91 65.0 29.0
10 7/1.35 1.0 7.0 1.83 3.08 110.0 52.0
16 7/1.70 1.0 8.0 1.15 1.91 170.0 70.0
25 7/2.14 1.2 10.0 0.727 1.20 270.0 110.0
35 7/2.52 1.2 11.5 0.524 0.868 364.0 150.0
50 19/1.78 1.4 13.0 0.387 0.641 500.0 200.0
70 19/2.14 1.4 15.0 0.268 0.443 688.0 269.0
95 19/2.52 1.6 17.5 0.193 0.320 953.0 360.0
120 37/2.03 1.6 19.0 0.153 0.253 1168.0 449.0
150 37/2.25 1.8 21.0 0.124 0.206 1466.0 551.0
185 37/2.52 2.0 32.5 0.099 0.164 1808.0 668.0
