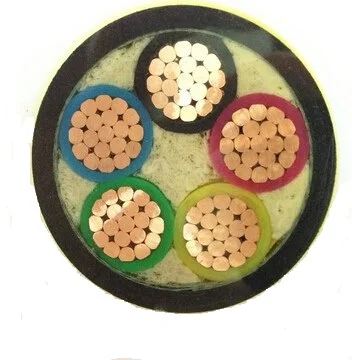

5 core power cable

Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
OEM
Model Number:
YJV
Insulation Material:
XLPE
Type:
Low Voltage
Application:
Industrial
Conductor Material:
Copper/Aluminium
Jacket:
PVC
Name:
YJV
Product name:
XLP
INQUIRY
Description

 5 core power cable

1.Main Application
   PVC insulated cables are used for power distribution and transmission, building, appliance, flexible cord and

machine tool. Insulation and jackets made from PVC which has a number of desirable properties inculding flexibility,

resistance to temperature, resistance to adverse environmental situations and low cost.
2.Standards
   GB/12706-2008, IEC60502, IEC 60228,IEC60332,BS 6004, AS/NZS 5000.1 ect.
   *KAIQI POWER can also design and produce for special application requirement.
3.Products Type

Chinese Type

Designation

Application

Cu

Al

VV

VLV

Cu conductor(Al conductor)PVC insulated PVC sheathed power cable

Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces.

VY

VLY

Cu conductor(Al conductor)PVC insulated PE sheathed power cable

VV22

VLV22

Cu conductor(Al conductor)PVC insulated double of steel-tape armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.

VV23

VLV23

Cu conductor(Al conductor)PVC insulated double of steel-tape armored PE sheathed power cable

VV32

VLV32

Cu conductor(Al conductor)PVC insulated steel-wire armored PVC sheathed power cable

For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.

VV33

VLV33

Cu conductor(Al conductor)PVC insulated steel-wire armored PE sheathed power cable



4.Production Range

   Rated Voltage U0/U(Um) (kV) : 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2 Nominal cross-section

(mm2): 1.5~630
5.Construction
   Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
   Conductor: Plain circular ,compacted or shaped stranded copper or aluminium conductor ,conform to IEC60228

CLass 1 or 2
    Insulation: PVC Compound Insulation
   Colour identification :
   1 Core: Red or Black
   2 Cores: Red, Black
   3 Cores: Red, Yellow, Blue
   4 Cores: Red, Yellow, Blue, Black
   5 Cores: Red, Yellow, Blue, Black, Green
   Above 5 Cores: Black Cores with White numbers
   The above identifying can be changed as order
   Bedding /Inner Sheath :PVC Compound
   Armour: Aluminium wire, Galvanized steel wire or Steel tape

   Outer Sheath:PVC or PE Compound
